Sideshifter

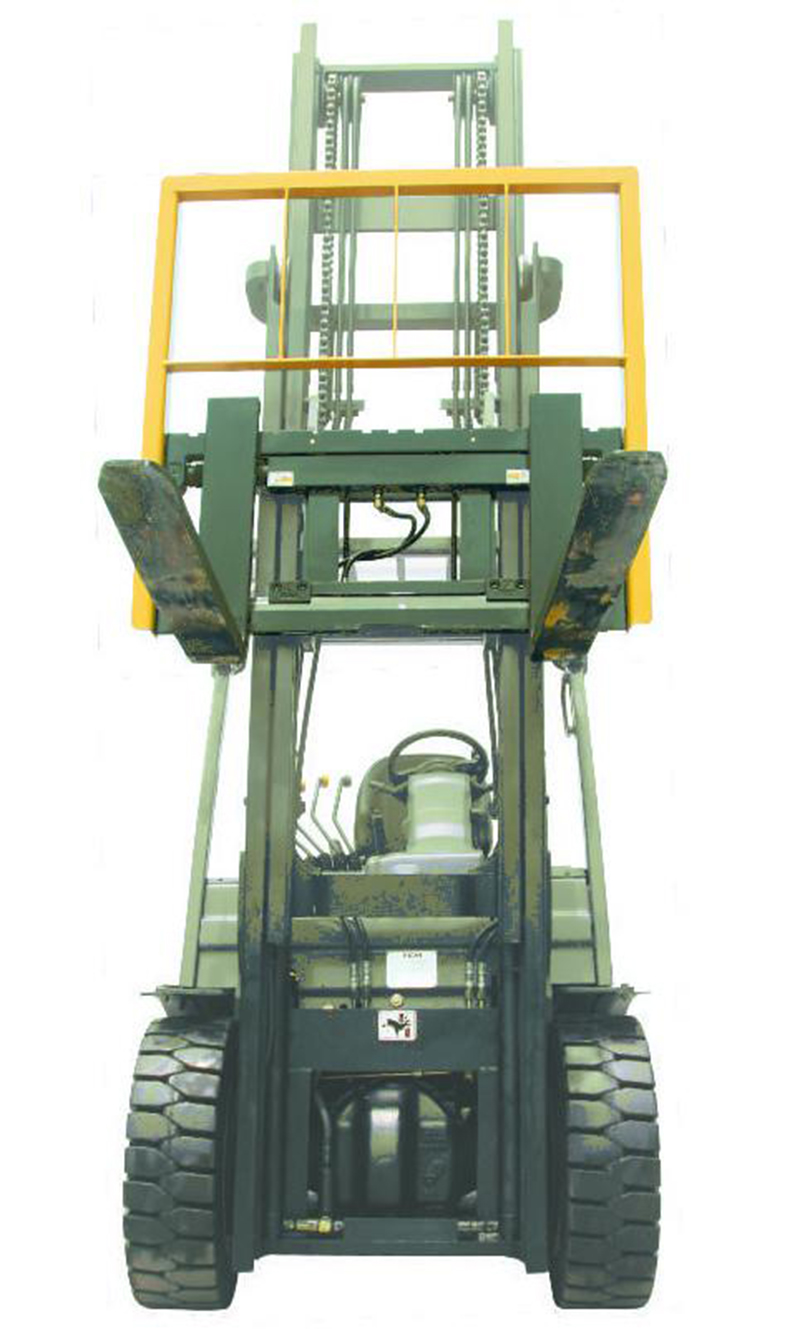

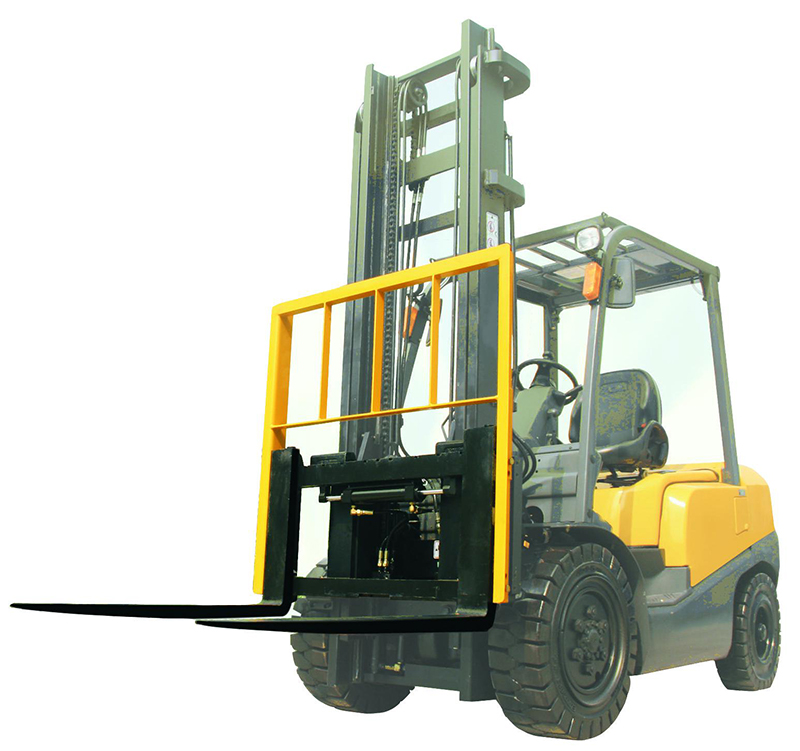

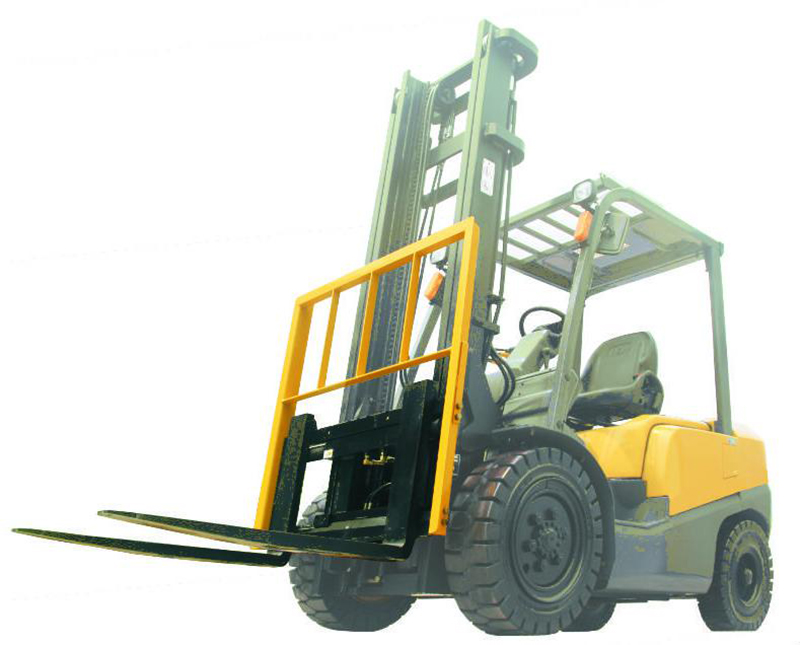

A.Integral sideshifter
Integral sideshifter connected forks and inner mast frame, hydraulic driving the forks lateral movement in the same direction, greatly improves the flexibility and moving efficiency. It is suitable for various occasions using forklift for moving and stacking.
Features:
Integrate fork carrier and suspension type sideshifter into a frame, widening the view and improving the cost performance;
Easy installed, no need welding and drilling, directly connected to the inner mast frame, same as installation of fork carrier;
Large carrying capacity, compact structure, light weight;
The slide bearings used high-strength wear-resistant nylon material to ensure smoothly move and long service life, easy to replace.

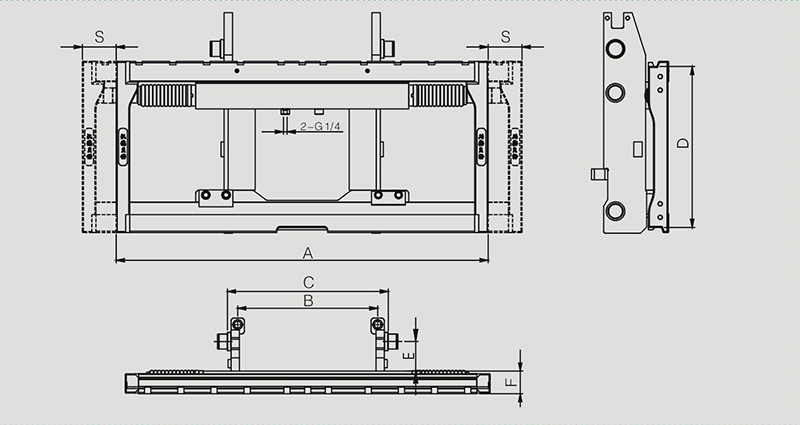

Technical Data:
|
HDZCY05T |
500@500 |
I |
±100 |
750 |
The sizes will be adjusted in accordance with the connection sizes of inner mast frame for different brands of forklifts. |
68 |
|
HDZCY15T |
1500@500 |
II |
±75 |
970 |
68 |
|
|
HDZCY20T |
2000@500 |
II |
±100 |
1038 |
68 |
|
|
HDZCY30T |
3000@500 |
III |
±100 |
1100 |
68 |
|
|
HDZCY50T |
5000@600 |
IV |
±150 |
1720 |
157 |
|
|
HDZCY70T |
7000@600 |
IV |
±150 |
1720 |
157 |
|
|
HDZCY100T |
10000@600 |
V |
±150 |
2400 |
219 |
Remarks:
1. Please get the actual comprehensive carrying capacity of forklifts and their attachments from the factory;
2. Matching this attachment requires one more oil circuit for the forklift;
3. The above types are the common products of Handbarow, customized solution is available, please contact our sales representative.

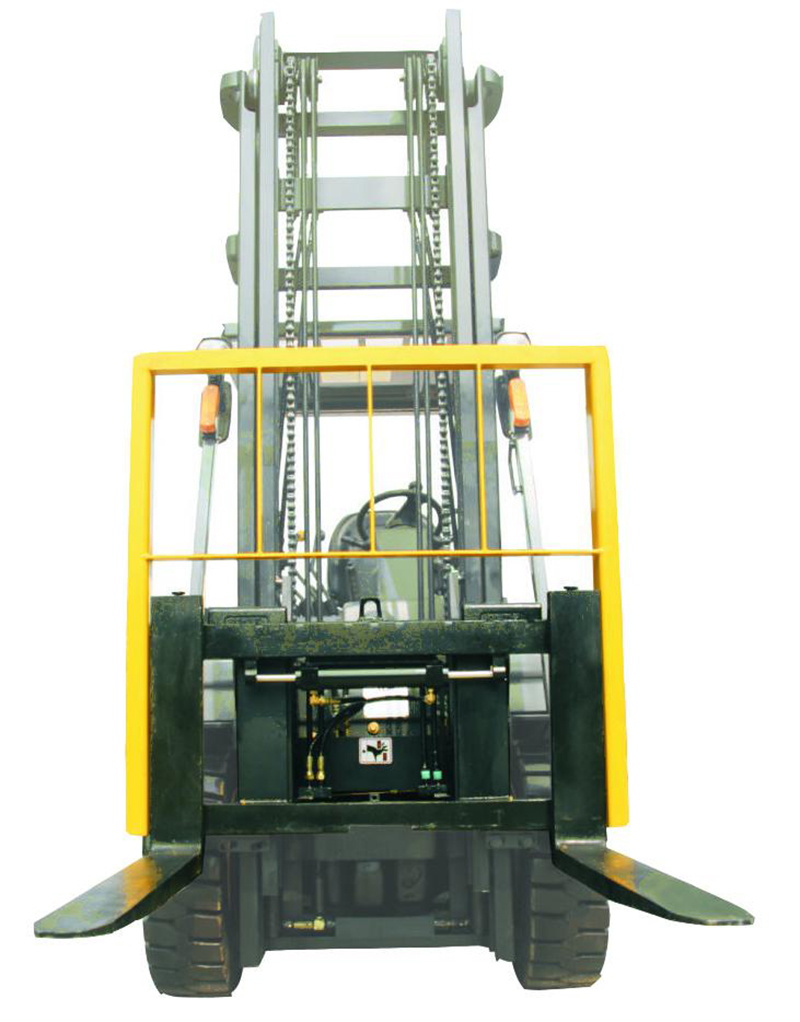

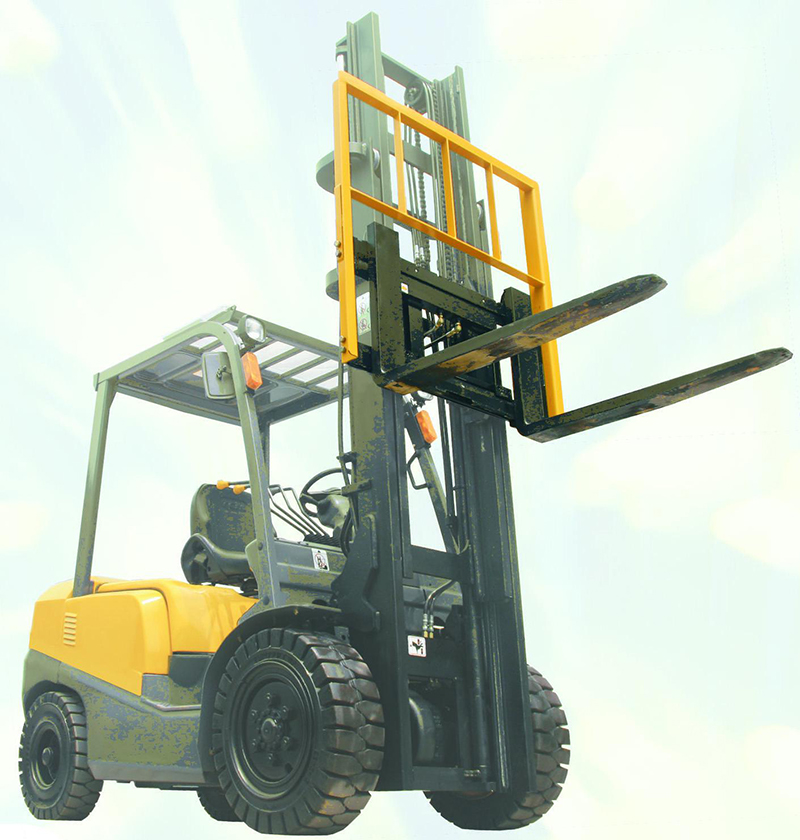

B.Suspension type sideshifter
Sideshifter is the most common forklift attachment, allowing lateral movement of ±100/150mm, thus greatly improves the flexibility and moving efficiency. It is suitable for various occasions using forklift for moving and stacking.
Features:
The suspension type sideshifter connected forks and truck carrier directly, hydraulic driving the forks lateral movement in the same direction, greatly improves the moving efficiency;
Ingenious cylinder layout makes it be fully protected during the operation, widen the driver's view;
Engineering plastic ensures the slide bearing durable and smooth moving, and block type structure design to avoid the bearing fall off;
With tooth surface on the lower hook, is easy for assembly and regulation, novel structure and high quality.

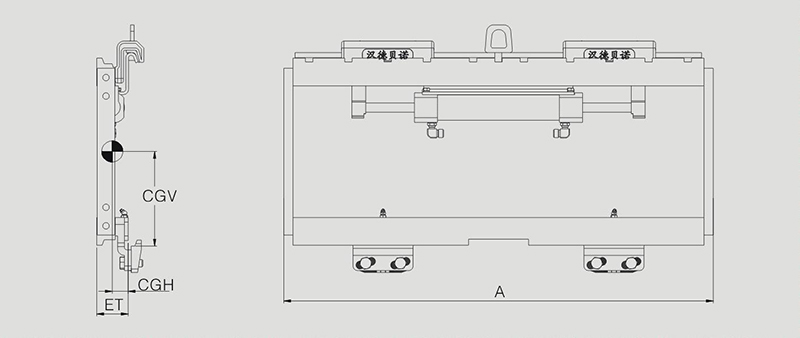

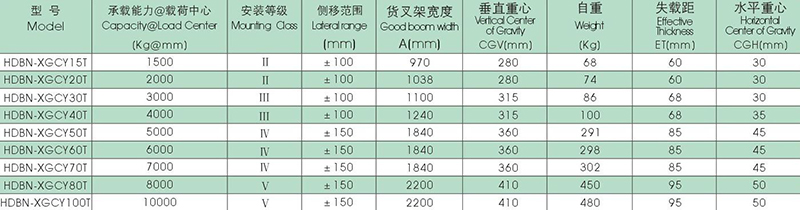

Technical Data:
Remarks:
1. Please get the actual comprehensive carrying capacity of forklifts and their attachments from the factory;
2. Matching this attachment requires one more oil circuit for the forklift;
3. The above types are the common products of Handbarow, customized solution is available, please contact our sales representative.
