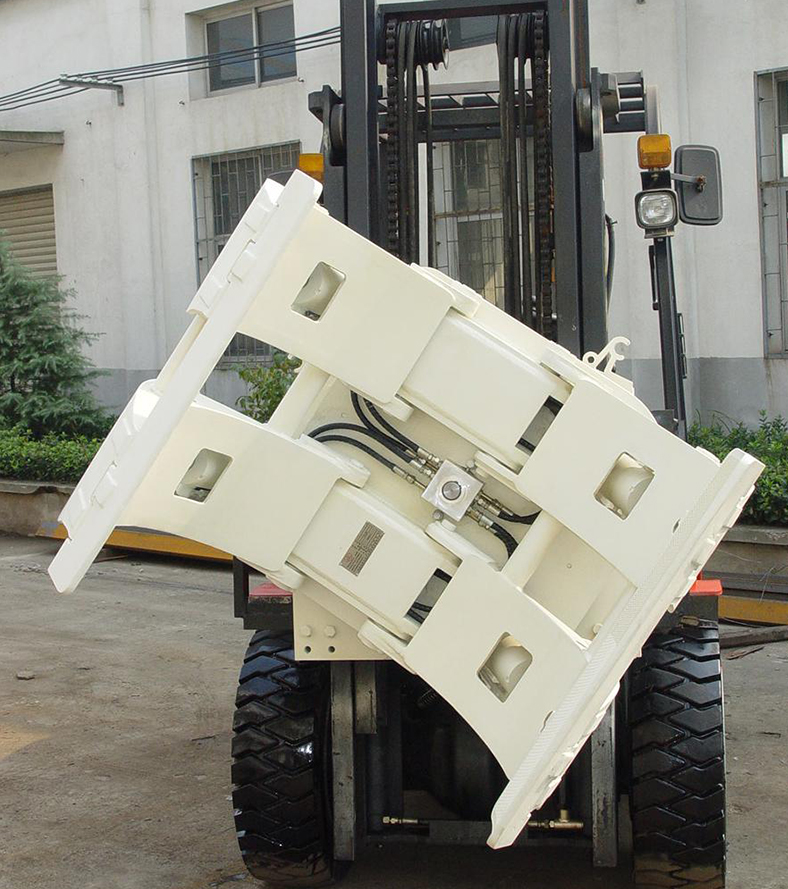

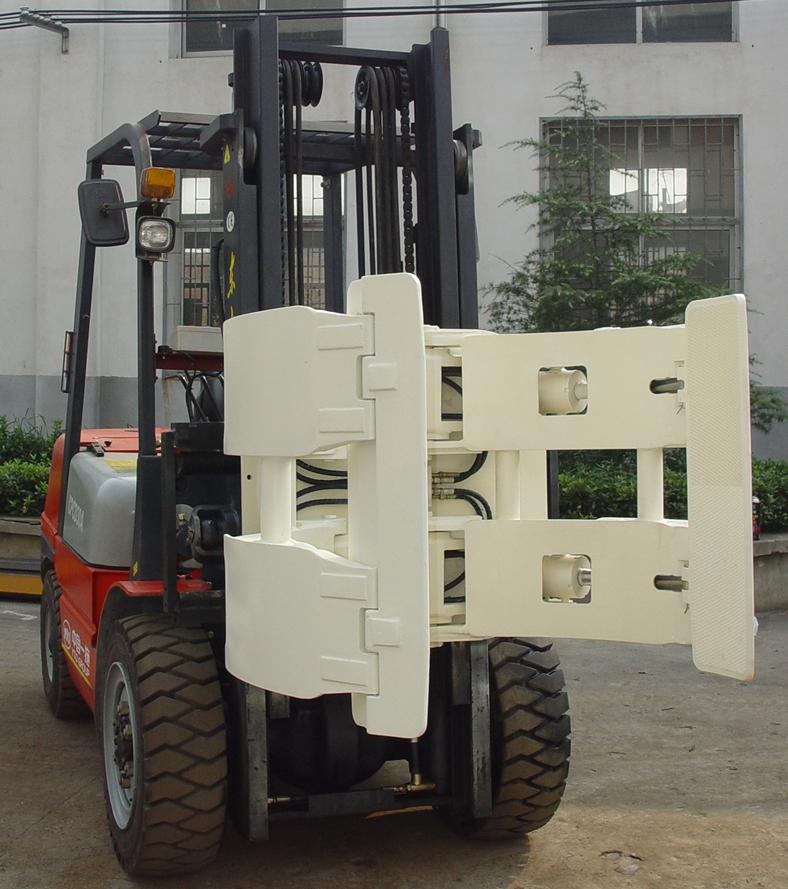

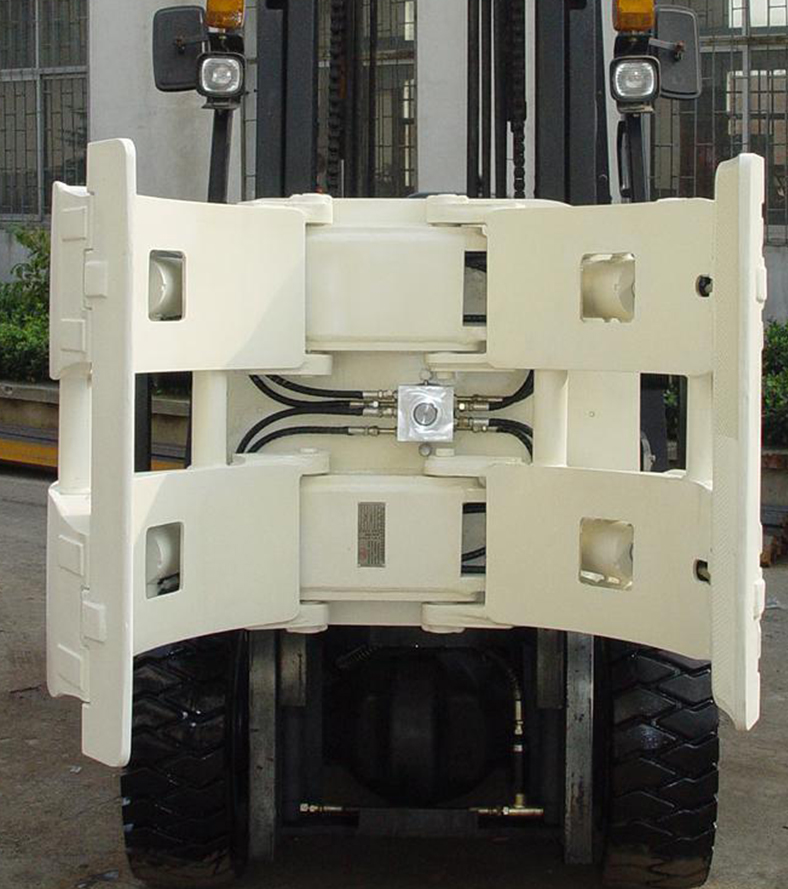

It's mainly used in paper making and printing industries for loading and unloading circular substances like paper rolls. Optional types: Fixed short arm and positioned short arm.

Features:
Rational design, compact structure, easy operation and high efficiency;
Continuous 360-degree rotation and self-lock at any angle on both directions;
All hinged parts adopt self lubricated bushings, the clamp with integral casting structure, abrasion resistance, long service life;
Hydraulic retention of cylinder valves is to ensure reliable clamping of long distance transportation.

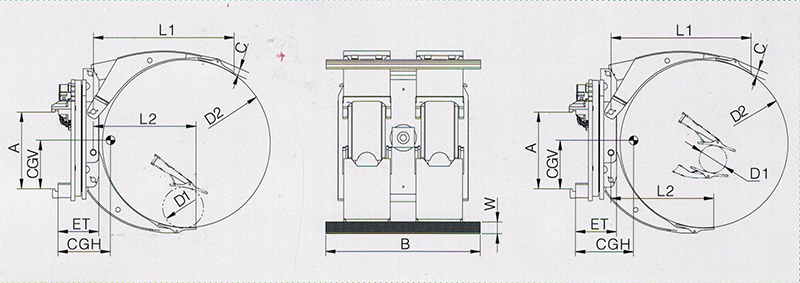

Technical Data:

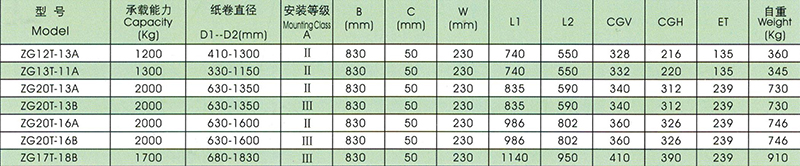

A.Fixed Short Arm type

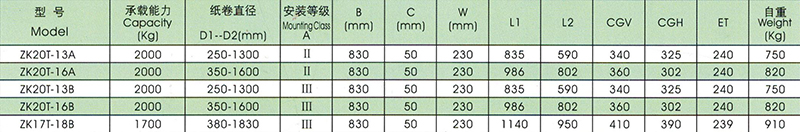

B. Positioned Short Arm type

Remarks:
1. Please get the actual comprehensive carrying capacity of forklifts and their attachments from the factory;
2. Matching this attachment requires two more oil circuits for the forklift;
3. The above types are the common products of Handbarow, customized solution is available, please contact our sales representative.
