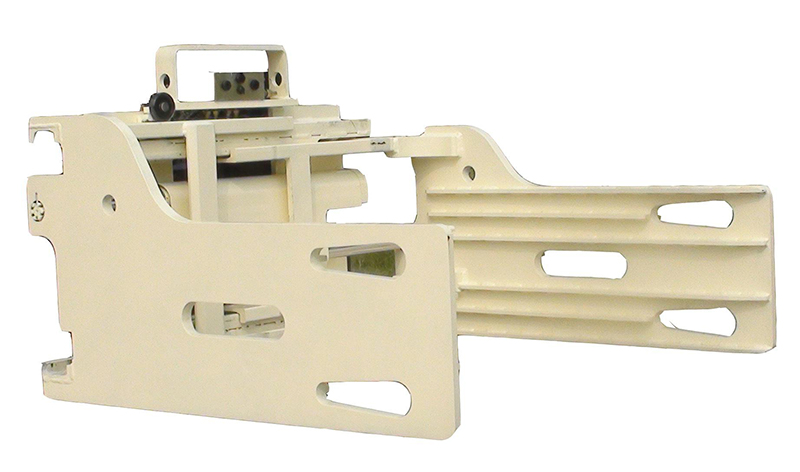

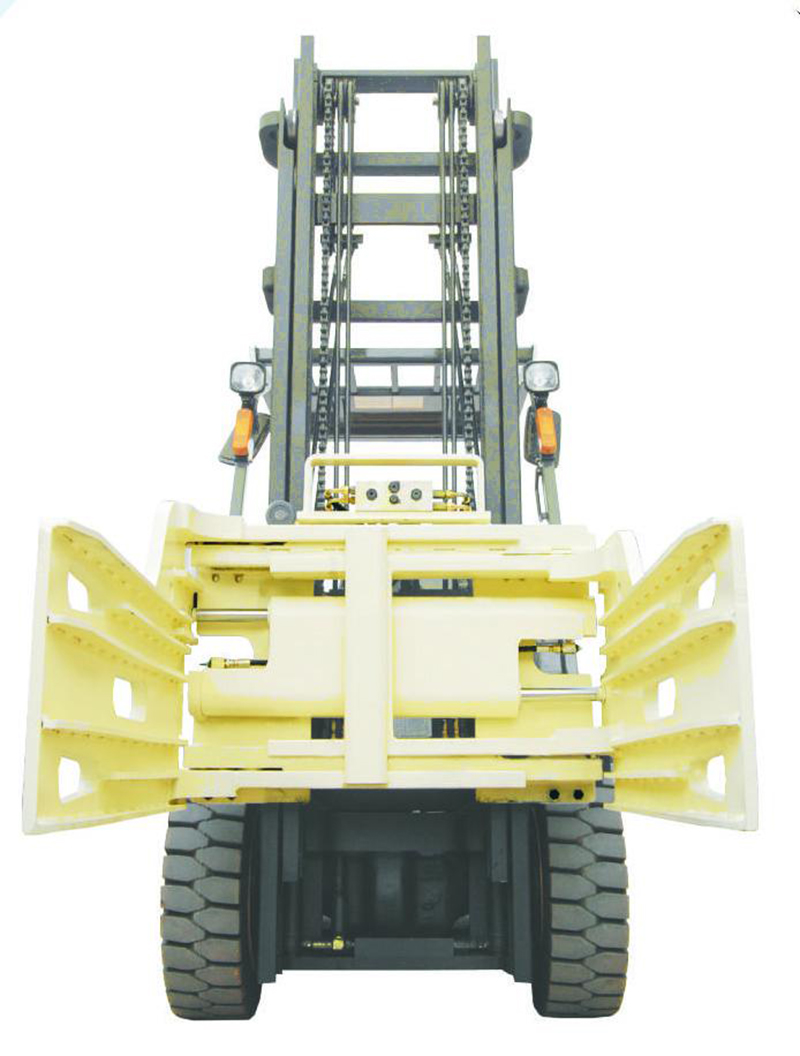

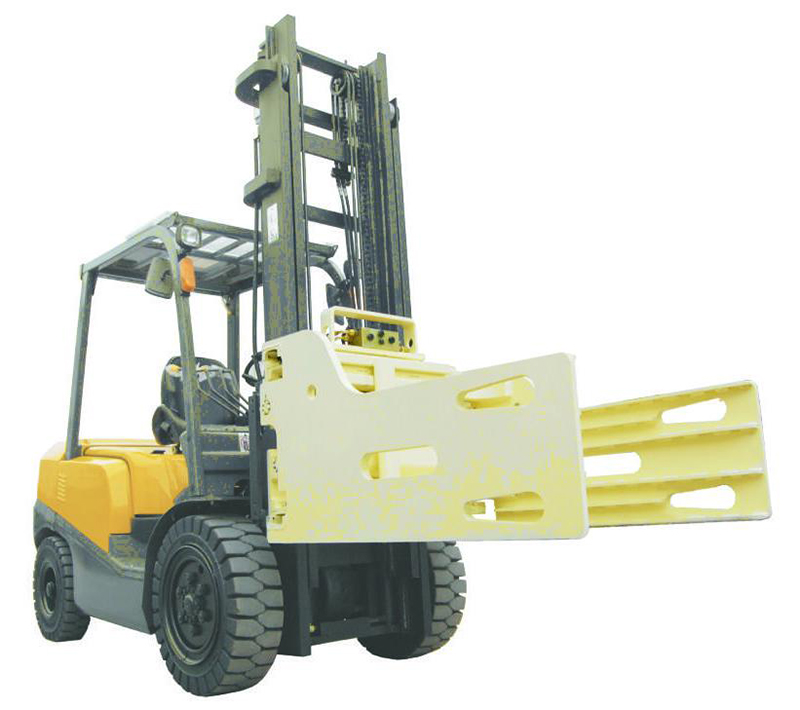

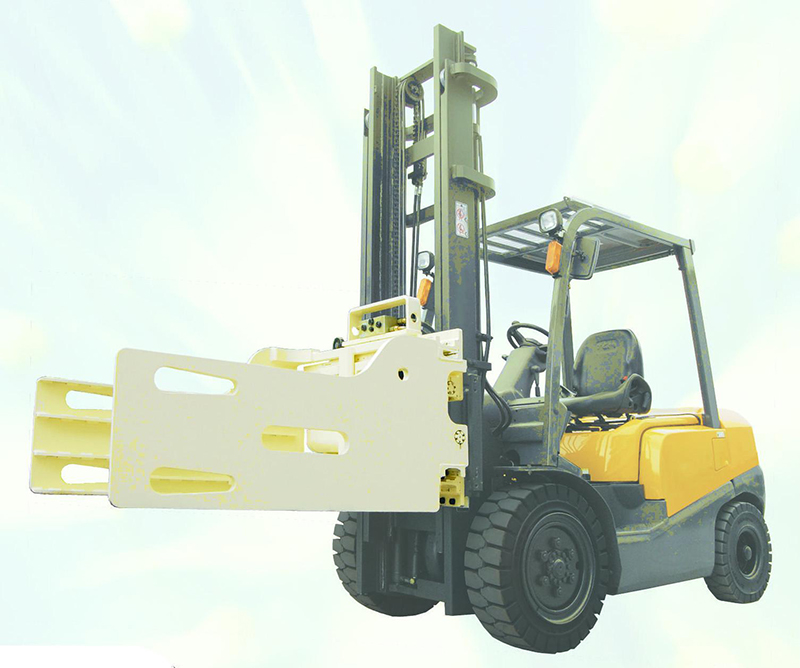

Bale clamps are used to handle different types of bale goods such as rags, waste paper, cotton, wool, hay, industrial scraps etc, can achieve high-effective and cost-efficient handling and stacking without a tray.

Features:

Using C type channel profiles, compact structure, high strength, light weight and easy for maintenance;
The control valves are installed in the top valve protection frame, reduce the effective thickness, and compact structural design ensures excellent driver visibility;
Modular design simplifies the oil circuit, optimizes the arm speed and reduces the consumption;
The inside of the splint is equipped with ribs to increase the friction coefficient, so as to easily clamp soft bales.

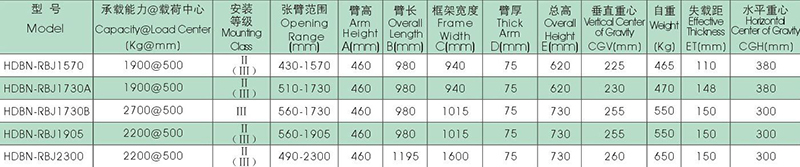

Technical Data:

Remarks:

1. Please get the actual comprehensive carrying capacity of forklifts and their attachments from the factory;
2. Matching this attachment requires 2 more oil circuits for the forklift;

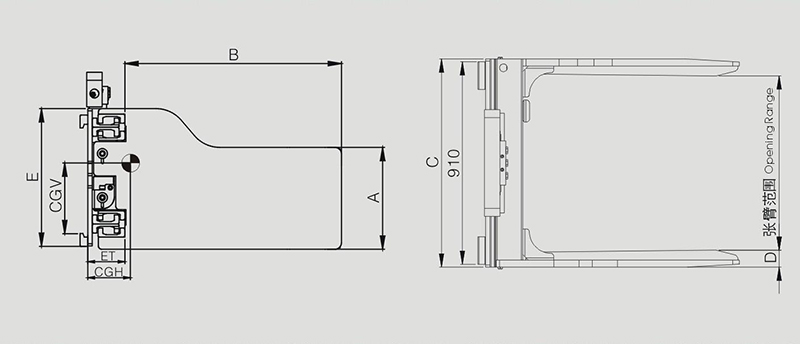

3. Arm thickness D is the spatial size during operation, different from the actual thickness;
4. Customized solution is available, please contact our sales representative.
