Rotating double-arm type block clamp

Date:2014-12-24    Views:1506

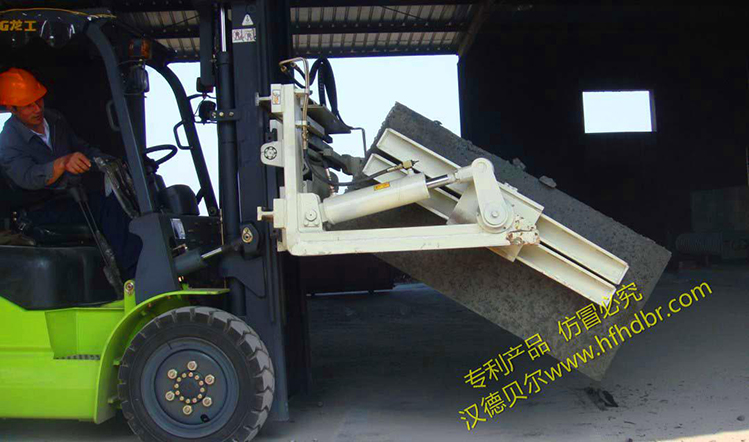

Rotating double-arm type block clamp is used to rotate, carry and stack concrete blocks, aerated bricks, etc. during manufacturing and construction.

Features:

Adopts full steel structure, high strength, combined with the flexibility of forklift, smooth running;
Rational designed, excellent driver visibility, simple and flexible operation;
The machine with the function of lateral movement and 90-degree rotation, ensures its operational flexibility and accuracy;
Detachable high-strength polyurethane layering, durable and easy to replace.

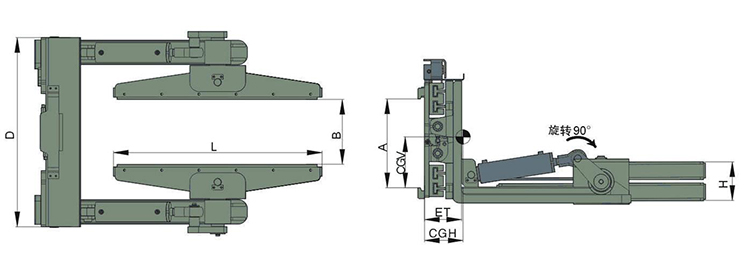

Technical Date:



Model

Capacity@Load

Center (kg@mm)

Mounting

Class A

Opening

Range B

(mm)

Arm Length

L (mm)

Overall

Width D

(mm)

Arm Height

H (mm)

CGV

(mm)

CGH

(mm)

ET

(mm)

QFZJ-A01

1800@500

II/III

310-1650

1100

1015

207

138

428

199

QFZJ-A02

2000@500

II/III

490-1790

1100

1015

207

142

436

199


Remarks:

1. Matching this machine requires three more oil circuits for the forklift.
2. The above type is the common product of Handbarow, customized solution is available, please contact our sales representative.
