Road edge stone clamp

Date:2012-01-24    Views:1537

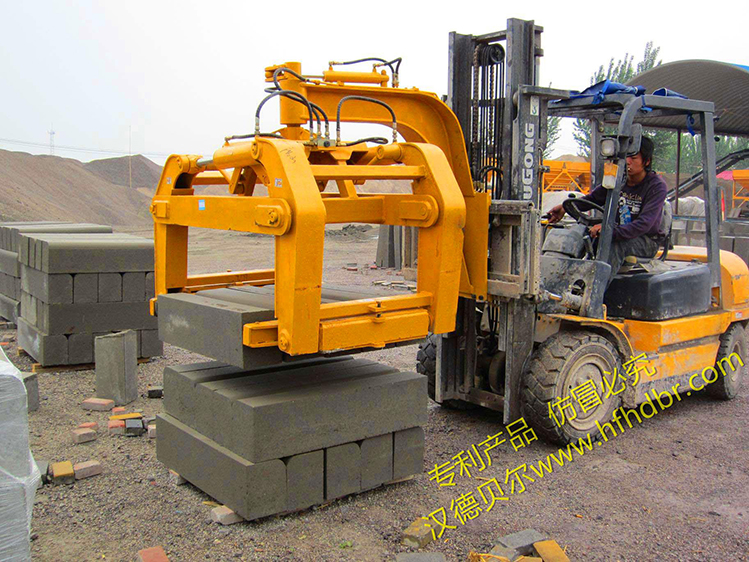

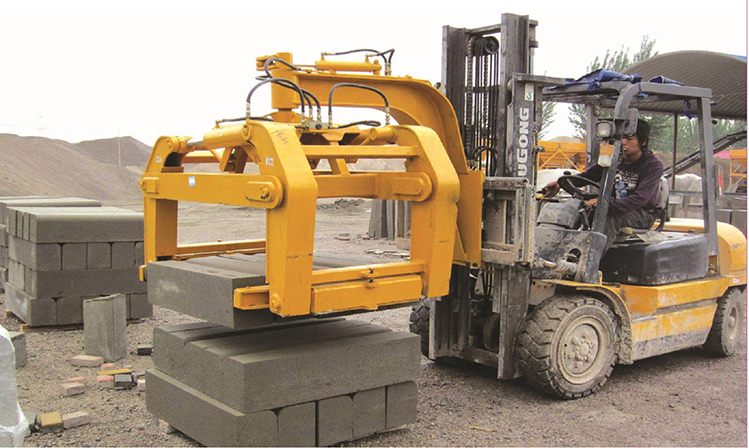

Road edge stone clamp is applicable to road edge stone, marble and other stone factories or plants, used to carry and stack the stones or blocks.

Features:

Adopts full steel structure, high strength, combined with the flexibility of forklift, smooth running;
Rational designed, excellent driver visibility, simple and flexible operation;
The machine with the function of lateral movement and 90-degree rotation, ensures its operational flexibility and accuracy;
Detachable high-strength polyurethane layering, durable and easy to replace.

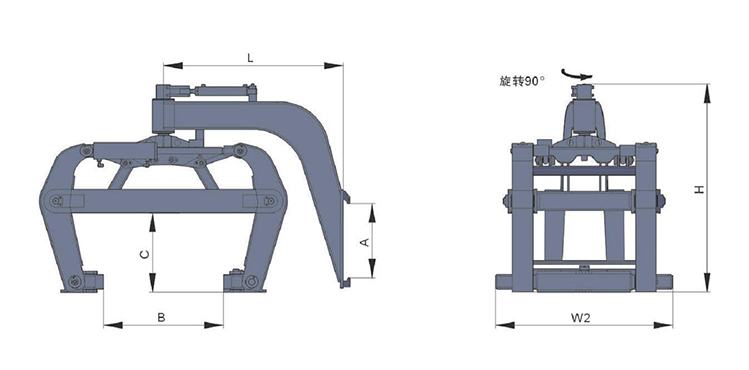

Technical Date:



Model

Capacity@Load

Center (kg@mm)

Mounting

Class A

Opening Range

B (mm)

C (mm)

W2 (mm)

L (mm)

H (mm)

LYZJ-A01

2000@630

II/III

500-930

500

1000

1150

1310


Remarks:

1.  Matching this clamp requires three more oil circuits to the fork carriage, and reserve M18*1.5 plane seal joints;
2. The above type is the regular product of Handbarow, customized solution is available, please contact our sales representative.
