Forklift block clamp

Date:2014-12-26    Views:1320

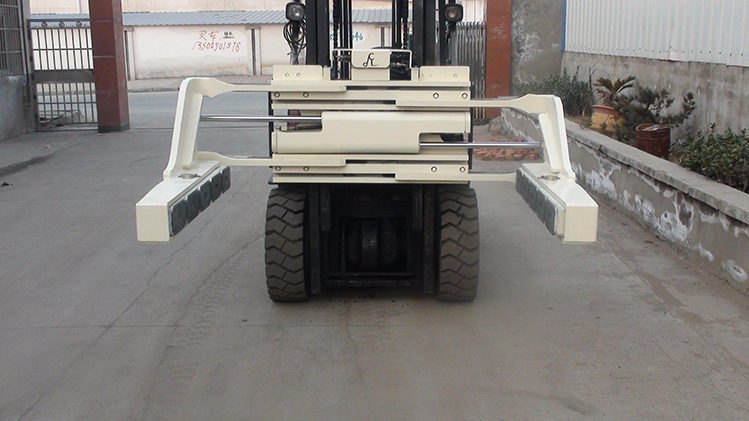

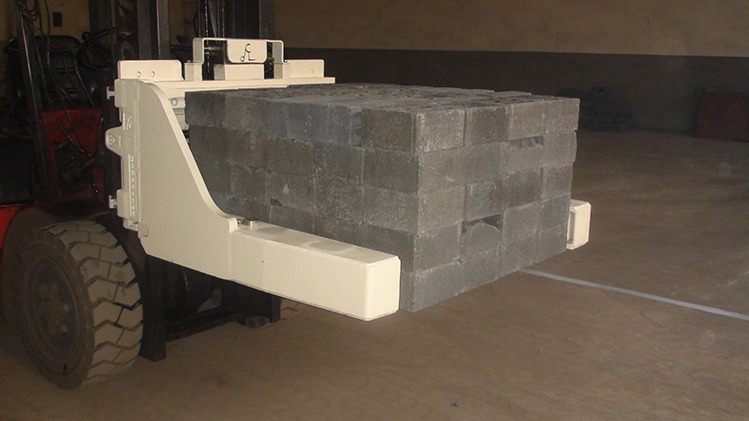

Forklift block clamp is widely used in construction material, metallurgy industry for handling concrete blocks, cement bricks, aerated bricks, etc. The high structural strength and durability ensure its long service life.

Features:

Adopts full steel structure, high strength, combined with the flexibility of forklift, smooth running;
Rational designed, excellent driver visibility, simple and flexible operation;
The function of lateral movement ensures its operational flexibility and accuracy;
Detachable high-strength polyurethane layering, durable and easy to replace.

Technical Data:



Model

Capacity@Load

Center (kg@mm)

Mounting

Class A

Opening

Range B

(mm)

Arm Length

L (mm)

Arm Height

H (mm)

Arm Thickness

T (mm)



ET

(mm)



CGH

(mm)

CGV

(mm)

Weight

ZKJ30T-A01

2500@500

III

290-1600

1100

250

208

156

220

220

536

ZKJ30T-A02

2500@500

III

290-1600

1200

250

208

156

230

220

550

ZKJ30T-A03

2500@500

III

290-1600

1400

250

208

156

250

228

566


Remarks:

1. Matching this machine requires two more oil circuits for the forklift.
2. The above type is the common product of Handbarow, customized solution is available, please contact our sales representative.
