Block clamp for automobile crane

Date:2012-12-27    Views:1312

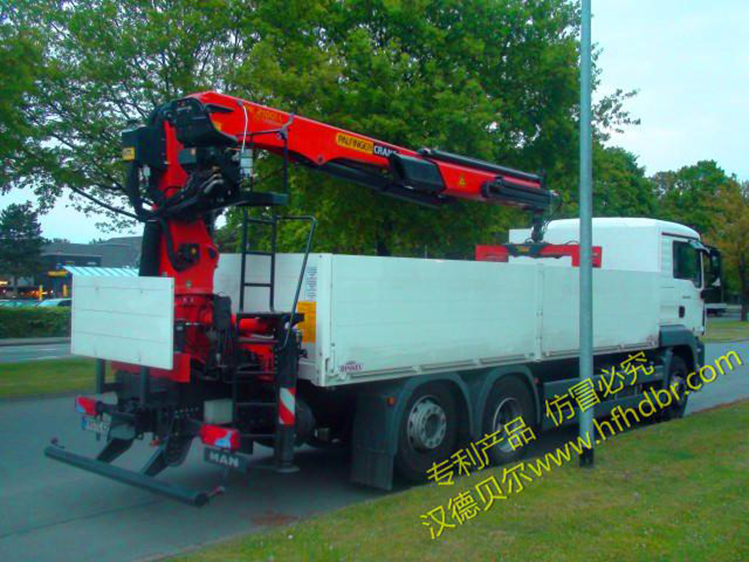

The block clamp is special used for the truck with crane, realize the automation of loading and unloading blocks, greatly reduced the costs for labors and pallets.

Features:

Adopts full steel structure, high strength, combined with the flexibility of automobile crane, hydraulic driving for smooth running;
High universality, can be used for 240 standard brick, eight-hole brick, porous brick, aerated block and many other kinds of bricks;
The machine with the function of 360-degree freedom rotation, ensures its operational flexibility, achieves seamless docking between each stack of bricks;
Quantity of single time clamping bricks: standard brick 500-700pcs which in 8-10 layers, can be customized according to the height of carriages;
Detachable high-strength polyurethane layering, durable and easy to replace.

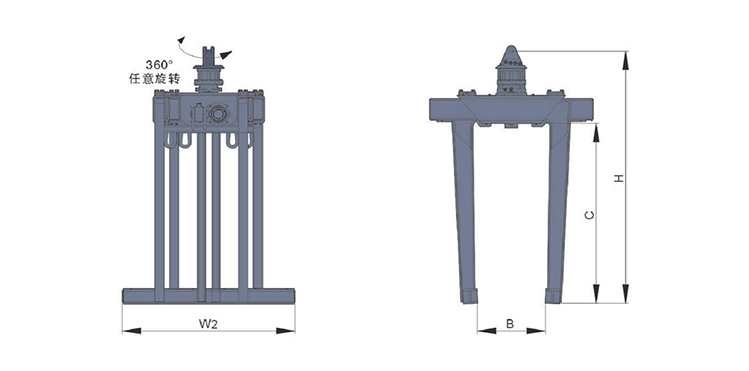

Technical Date:



Model

Capacity (kg)

Opening Range B

(mm)

W2 (mm)

C (mm)

H (mm)

D (mm)

KM32V-1100

1500

400-1400

1100

1100

1420

25

KM32V-1300

1800

400-1400

1100

1300

1660

25

KM32V-1500

2000

400-1400

1100

1500

1830

25



Remarks:

1.Matching this clamp requires two more oil circuits for the crane, and reserve M18*1.5 plane seal joints;
2.The above type is the regular product of Handbarow, customized solution is available, please contact our sales representative.
