Overhead bell block clamp

Date:2014-12-26    Views:1781

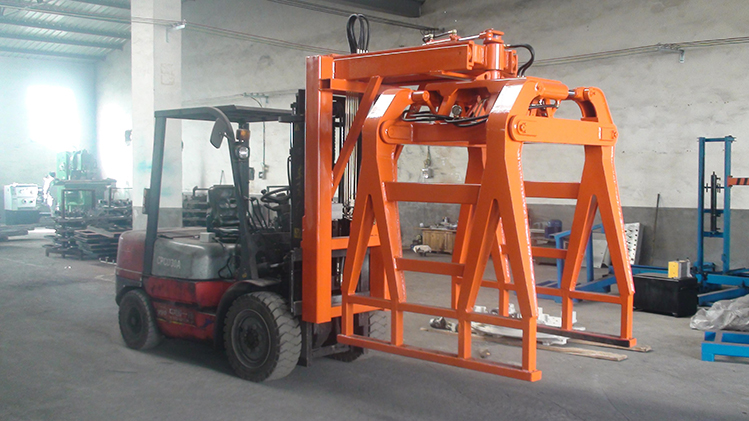

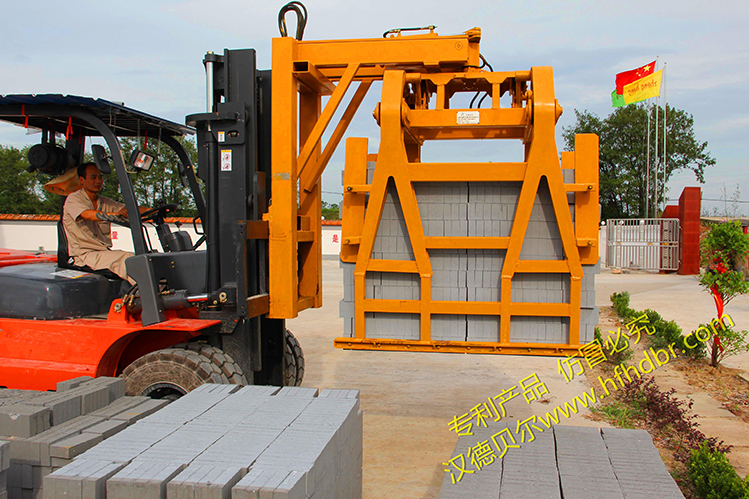

Bell block clamping machine is mainly used to handle and stack various of bricks and concrete blocks, greatly improves the efficiency and reduces the laboring costs.

Features:

Adopts full steel structure, high strength, smooth running;
Rational designed, excellent driver visibility, simple and flexible operation;
Detachable high-strength polyurethane layering, durable and easy to replace;

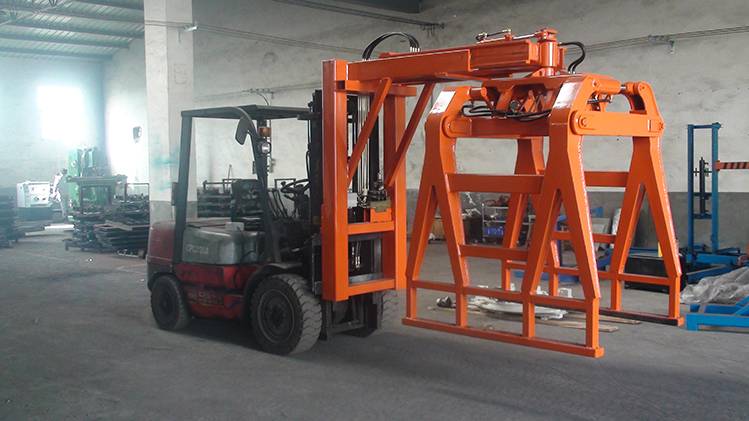

The machine with the function of lateral movement and 90-degree free rotation(forward function can be supplied according to customer's requirements), ensure its operation flexibility and accuracy.

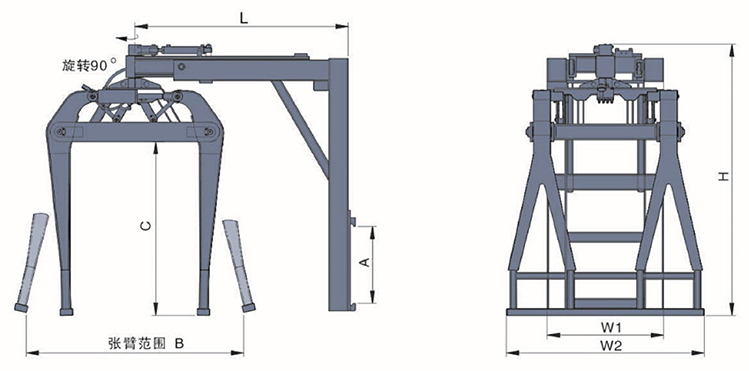

Technical Date:



Model

Capacity@Load

Center (kg@mm)

Mounting

Class A

L

(mm)

Opening

Range (mm)

C

(mm)

W1

(mm)

W2

(mm)

H

(mm)

Lateral Movement (mm)

BZJ-C01B

4500@1350

IV

1350

788-1638

1460

900

1550-2100

2100

±150

BZJ-C02B

5000@1350

IV

1350

788-2120

1460

900

1550-2100

2100

±150



Remarks:

1. Matching this machine requires three more oil circuits for the forklift.
2. The above types are the common products of Handbarow, customized solution is available, please contact our sales representative.
