B series overhead rotating block clamp

Date:2014-12-26    Views:1529

Brick handling machine is mainly used to load and unload a variety of palletless bricks or concrete blocks efficiently, saving the costs for pallets and laboring.

Features:

Adopts full steel structure, high strength, smooth running;
Rational designed, excellent driver visibility, simple and flexible operation;
High universality, can be used for 240 standard brick, eight-hole brick, porous brick, aerated block and many other kinds of bricks;
The machine with the function of 360-degree freedom rotation, ensures its operational flexibility, achieves seamless docking between each stack of bricks;
Quantity of single time clamping bricks: standard brick 500-700pcs which in 8-10 layers, aerated block 6 layers which height is 600-1200mm, can be customized according to the height of carriages;
Detachable high-strength polyurethane layering, durable and easy to replace.

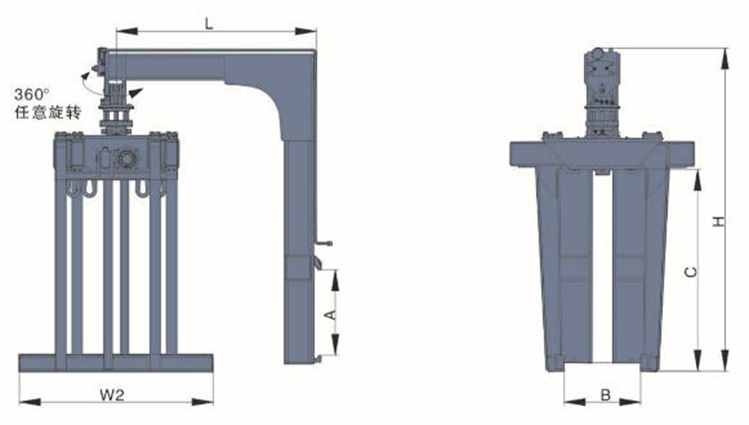

Technical Date:



Model

Capacity (kg)

Mounting Class A

B (mm)

C (mm)

W2 (mm)

L (mm)

H (mm)

Lateral Movement (mm)

SZJ-B01

2000

II/III

500-1500

1260

1400

1220

2000

±100



Remarks:

1. Matching this machine requires three more oil circuits for the forklift.
2. The above type is the common product of Handbarow, customized solution is available, please contact our sales representative.
